Pressure hoses (hereinafter RVD) are flexible pipelines that transmit energy by transporting oils, emulsions and other hydraulic fluids. As HPR connection with mating part, fittings for HPR are used. In some cases, special resistance in the external environment is required. STAINLESS STEEL FITTINGS are used for this purpose.

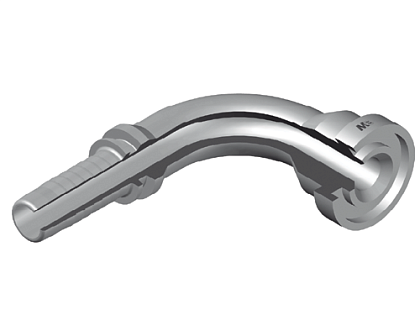

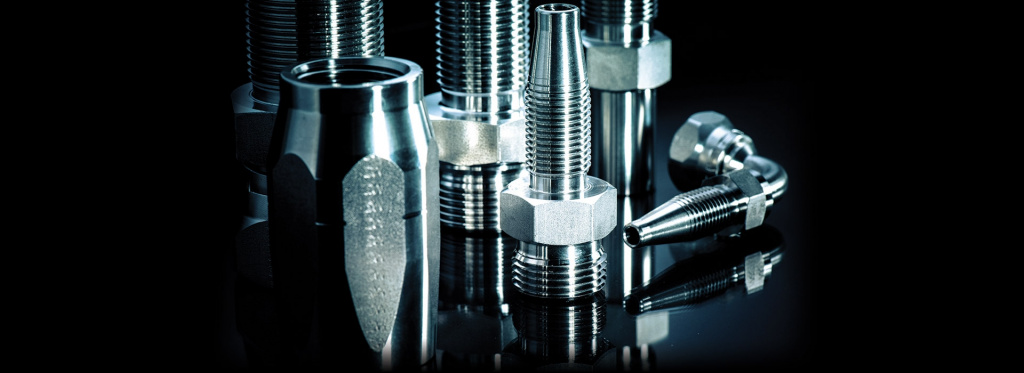

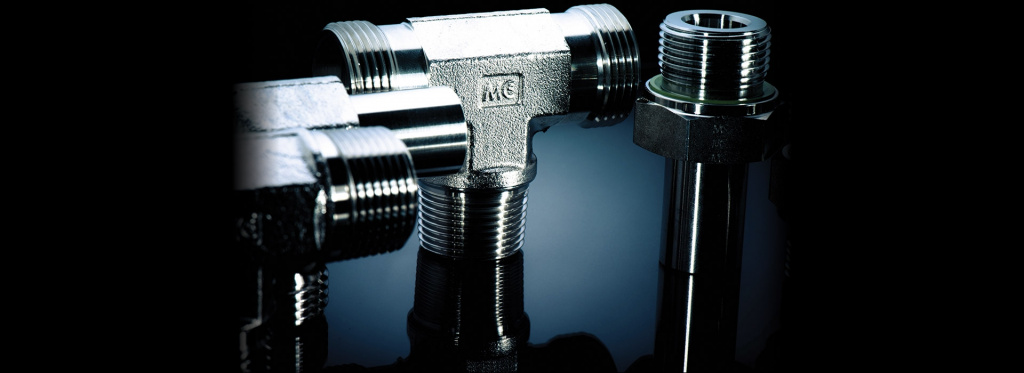

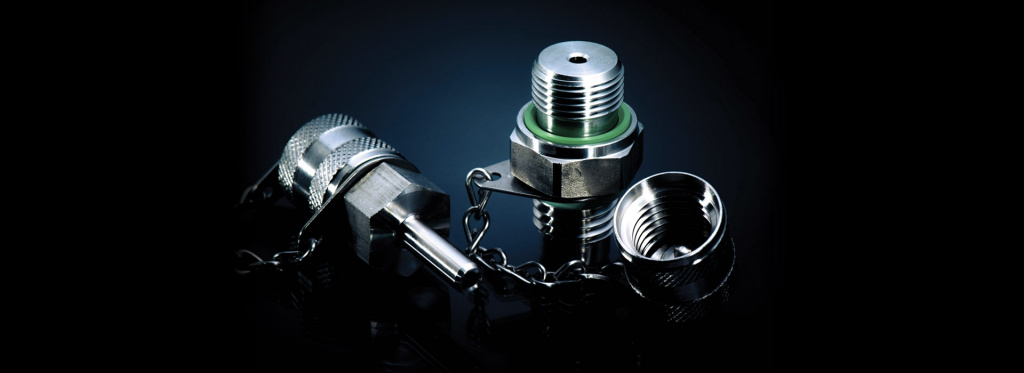

Stainless fittings for HPR
Stainless fittings for HPR - this is the connecting part of the pipeline elements, which is installed at the points of turns, transitions, branches and connections of various pipe diameters.
Types of stainless steel for HPR
In general, systems using HPR fittings can operate in the -60 to + 200 ° C temperature range for stainless steel.
HPR fittings are divided by liner type into three series:
- Universal series - used in all high pressure hoses (except winding hoses).
- Interlock series - used to crimp hoses of the winding type, it is necessary to remove the inner and outer layers of rubber of the high-pressure hose;
- CS series - designed for crimping hoses of the winding type, while removing the inner and outer rubber layer of the high-pressure hose is not required.
Buy stainless fittings for RVD in the company Hydravia
We offer high quality stainless steel fittings for RVD world leading brands such as Cast and MCS.
You can buy stainless steel fittings for RVD from us for any equipment brought from America, Japan, Europe, China or manufactured in Russia. All our fittings are marked so they can be easily identified.
By seal type, stainless fittings are divided into:
- BSP, JIC, JIS - cone seal;
- DKO-L, DKO-S, SFS, SFL, STECK - sealing by ring or cone;
- DK - area summarization;
- NPTF, BSPT, NKT - conical thread seal;
- ORFS - gasket seal;
- Banjo - bolt seal.
Stainless steel fittings are distinguished by connecting threads:
- metric thread - DKO-L, DKO-S, DKL;
- inch thread - BSP, BSPT, JIC.
In this case, the thread can be both cylindrical and conical. The size of the hexagon is indicated by the letter S and is comparable to the size of the key.
In our company, stainless fittings are classified according to value for money:
- Standard Class - Cast Fittings;
- Professional Class - MSC Fittings.
Fittings for HPR made of stainless steel (stainless steel) are crimped with crimping sleeves made of the same material. The hose manufacturing process is called HPR pressure testing. Compatible stainless fittings for HPR and stainless steel crimps for HPR shall be used for this purpose. Our company has the widest range of certified products for each class. We constantly replenish our inventory, offering you the minimum shipping time.
