Pipe fasteners

To maintain the integrity of the hydraulic system during operating vibrations of pipelines, special attention is paid to pipe fastening. Fastening is carried out using DIN 3015 pipe clamps (blocks).

If the tube is not fixed after installation, constant vibrations will lead to loosening of the connecting elements, which will lead to an unplanned shutdown of the equipment, loss of hydraulic oil and possible damage to both the system and injuries to the operator located near the units.

We offer a wide range of different fasteners for DIN3015 series pipes made of polypropylene.

You can use pipe fasteners at different operating pressures. The presence of different configurations of pipe fasteners will allow it to be used with any special-purpose equipment, as well as in any other industrial application.

The material from which pipe fasteners are made is not susceptible to corrosion, resistant to weak acids, benzine-containing products, mineral oils, alkali. Operating temperature for fasteners made of polyamide from -40 ° С to + 120 ° С, polypropylene from -30 ° С to + 90 ° С, aluminium to + 300 ° С.

The range of pipe fasteners supplied by our company covers pipe diameters from 6 mm to 406 mm.

Well-chosen pipe fasteners ensure reliable and long-term operation of the entire system. DIN 3015 pipe clamps are easy to assemble and use.

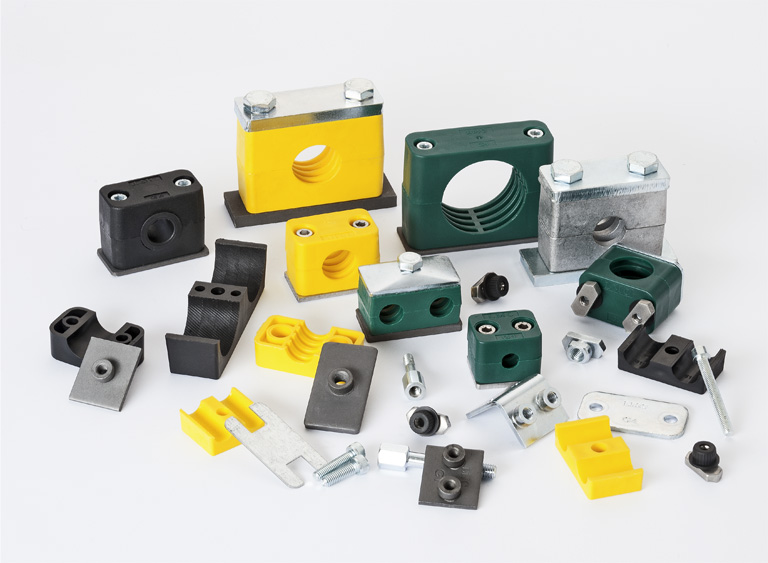

Variety of fasteners

What are pipeline fasteners used for?

Pipe clamps compensate for the loads to which the system is subjected, reduce shocks, vibrations and vibrations, and avoid deformation of the pipeline.

Fasteners are used for installation of:

hydraulic pipes,
high pressure hoses,
electrical cable,
pneumatic systems and equipment.

With pipe fasteners, you can fix pipes up to 406 mm in diameter, fix pipes in pairs and separately.

Applications of pipeline fasteners:

railway equipment,
agricultural machinery,
shipbuilding, marine industry,
oil refineries,
chemical industry.

Types of pipe fasteners

Clamps of the DIN3015 series are divided into three types:

light batchDIN3015/1,
heavy DIN3015/2 series (high axial loads),
dual series DIN3015/3.

Pipe Mounting Housing Options

Fasteners with the following types of housings are manufactured:

profiled inside with clearance for stress

Ribs on the inner surface of the housing dampen shocks and vibrations and take on forces acting in the axial direction of the pipe. The gap between the halves causes the pipe to be pre-tensioned.

smooth inside without voltage gap (recommended for cables).

It is recommended to use clamps with smooth inner surface for attachment of hoses and cables.

Types of lower plates of fasteners

The lower plate of the pipe clamp can be either welded or bolted, depending on the type of pipeline fastening. It is also possible to design the lower plate in the form of a rail, DIN-rail.

Pipe Fastener Options

safety interlock,
bolts for inner and outer hexagon,
rubber liners (noise and vibration isolation),
dual housing (for reinforced series only).

Buy fasteners for hydraulic pipes

We offer wholesale pipe fasteners of various sizes and modifications from LMC and guarantee the availability of pipe fasteners in stock.

The products are certified: a certificate for compliance with the international standard ISO 9001, Lloyd's Register for use in the marine and oil sector, as well as a fire safety certificate for use on railways.
