Hose, tube & pipe cleaning system

31 goods
Filters
Подставка под пистолет
Article:
Availability:
нет
Reserve:
нет
6 874.01 руб. / PC.
Насадки для рукавов
Article:
Availability:
нет
Reserve:
нет
4 409.24 руб. / PC.
Многоразовые заглушки для фланцев
Article:
Availability:
нет
Reserve:
нет
5 741.45 руб. / PC.
Адаптерные кольца
Article:
Availability:
много
Reserve:
нет
5 442.58 руб. / PC.
UC-BM1.25, до 1 1/4"
Article:
Availability:
нет
Reserve:
нет
256 072.30 руб. / PC.
Econom Launcher UC-EL8,  до 1.1/4"
Article:
Availability:
нет
Reserve:
нет
77 564.63 руб. / PC.
Универсальные снаряды
Article:
Availability:
нет
Reserve:
нет
10 руб. / PC.
Универсальные снаряды (комплекты)
Article:
Availability:
много
Reserve:
нет
880 руб. / Set
Снаряды для продувки труб
Article:
Availability:
много
Reserve:
нет
1 397 руб. / Set
Насадки для труб
Article:
Availability:
много
Reserve:
нет
4 198.70 руб. / PC.
Контрольная станция
Article:
Availability:
нет
Reserve:
нет
1 132 219.99 руб. / PC.
UC-EL1.25,  до 1 1/4"
Article:
Availability:
нет
Reserve:
нет
25 462.03 руб. / PC.
Econom Launcher UC-EL7-DP,  до 1.1/4"
Article:
Availability:
нет
Reserve:
нет
98 062.03 руб. / PC.
Насадки JIC
Article:
Availability:
нет
Reserve:
нет
4 409.24 руб. / PC.
Держатель для насадок
Article:
Availability:
много
Reserve:
нет
27 790.07 руб. / PC.
Абразивные снаряды
Article:
Availability:
много
Reserve:
нет
1 628 руб. / Set
YPBW-51-PM до 2"
Article:
Availability:
много
Reserve:
мало
55 000 руб. / PC.
UC-HL-9-2, до 2"
Article:
Availability:
нет
Reserve:
нет
249 708.80 руб. / PC.
UC-HL2,  до 2"
Article:
Availability:
нет
Reserve:
нет
105 089.71 руб. / PC.

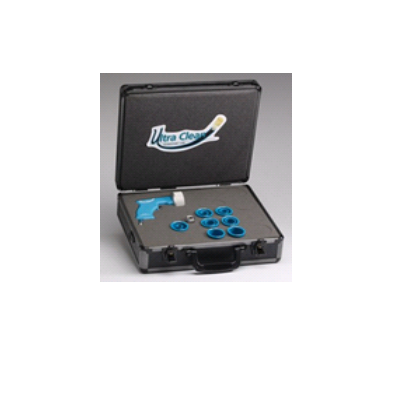

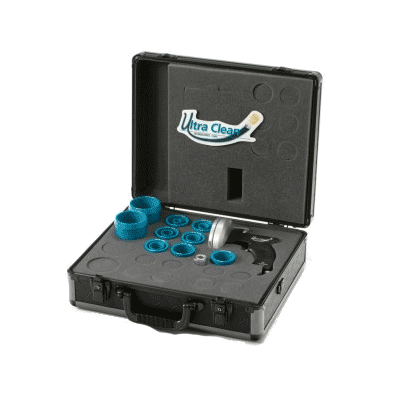

Чемодан
Article:
Availability:
нет
Reserve:
нет
13 268.86 руб. / PC.
Насадки Flat Face
Article:
Availability:
нет
Reserve:
нет
4 409.24 руб. / PC.
Зачистные снаряды
Article:
Availability:
много
Reserve:
нет
7 810 руб. / Set
UC-HL3.5, до 3 1/2"
Article:
Availability:
нет
Reserve:
нет
142 628.75 руб. / PC.
UC-HL-25-2, до 2"
Article:
Availability:
нет
Reserve:
нет
258 956.94 руб. / PC.
UC-HL4.5, до 4 1/2"
Article:
Availability:
нет
Reserve:
нет
204 073.76 руб. / PC.
Bench Mount Launcher, до 1.1/4"
Article:
Availability:
много
Reserve:
нет
283 083.13 руб. / PC.
UC-HL-1-4.5, до 4.1/2"
Article:
Availability:
нет
Reserve:
нет
239 560.64 руб. / PC.
UC-HL1-3.5E, до 3.1/2"
Article:
Availability:
нет
Reserve:
нет
192 767.52 руб. / PC.
UC-EL-7 до 1.1/4"
Article:
Availability:
много
Reserve:
нет
107 982.60 руб. / PC.

Ultra Clean is a quick way to clean contaminated hydraulic lines by means of a pneumatic installation and projectile, put into a sleeve or the pipeline. With this system you can keep the pipeline clean, avoiding failures and system downtime.

Recommendation of expulsion:

HYDRAULICS HIGH PRESSURE HOSE

During cutting the hydraulic sleeve with metal blade dust, metal particles, rubber parts appear on the inside surface of the sleeve. Therefore, every time you have to expulsion the sleeve after cut. This operation is performed prior to installation of the sleeve end connections. For best results blow sleeve on both ends. After molding sleeve blow again. Do not forget to remove a projectile from a hose from after the operation. After removing the projectile put the cap on the end connections.

USED SLEEVES AND PIPE ASSEMBLY

The hose and pipe should be cleaned of dirt and oil residue if the hydraulic system is damaged. Before start blowing you need disconnect the sleeve from the hydraulic system and assemble a launcher to pipeline for few seconds without inserting any projectile and remove excess contaminated hydraulic fluid with air. Blow pipeline for full clean dirt, rubber and metal particles using projectile. Make visual inspection of used projectile. Repeat the cleaning process as many times as you need.

TUBES

Before cutting the tube it’s necessary to debur the ends of a tube. If there are rust, weld slag, or other types of corrosion on the inside surface of the tube you need use abrasive projectile as many as you needed to remove traces of corrosion. The deburring of a tube should be done before cleaning operation. To start blowing the tube you need to properly assemble JIC nozzle to the deburred tube end.

PIPE LINES

We recommend using grinding or abrasive projectiles for blowing pipes made with carbon steel. The projectiles are multiuse that means that you could use them as long as the items will be worn out. After cleaning the tube with grinding projectiles or abrasive projectiles it is necessary to blow it with standard smooth projectiles to remove wastes of the grinding / abrasive projectiles used before. The mentioned procedure should be used only if a tube has relatively smooth surface. To avoid any corrosion you could soak a projectile with chemical agents and treat the internal surface of the tube.
