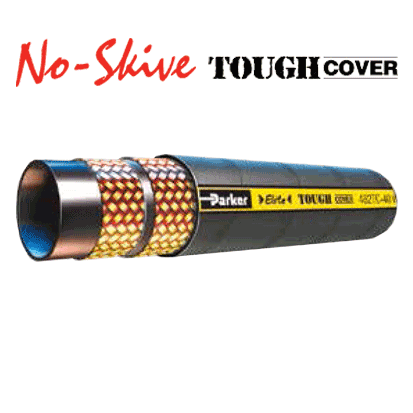

The Parker Elite 462TC Series 462TC compact medium pressure hoses with No-Skive construction exceed EN 857-2SC and ISO 11237 Type 2SC requirements and are well suited for heavy-duty applications.

The state-of-the-art materials and technologies used in manufacturing provide these compact hoses with advantageous features such as easy routing, abrasion resistance, small bend radius, compatibility with working media and environmental resistance. The Tough Cover outer layer provides up to 80 times the abrasion resistance of standard rubber sheathed hoses.

The Tough Cover outer layer provides up to 80 times the abrasion resistance of standard rubber sheathed hoses.

Target Markets

Construction machinery and equipment,
Injection molding machines,
Agricultural and forestry equipment,
Materials transportation and storage,
Pulp and paper industry.

Features and Benefits

Approved by MSHA.
Thin outer layer hose is lightweight and long lasting due to the use of high quality composite materials.
High flexibility makes installation easy and extends service life.
The outer layer has increased abrasion resistance that exceeds the requirements of ISO 6945, which also extends service life.
Small bend radius and light weight allow the hose to be used in applications where compactness and weight are critical.
Ozone-resistant outer layer increases resistance to aging and weathering.
No-Skive fitting technology is applicable to the entire range of medium pressure hoses for easier, faster and safer hose assembly.

Applications

Any medium pressure system for mobile machinery and industry in general,
Construction machinery,
Agricultural and forestry equipment,
Loading and unloading equipment,
Automotive industry and machine tools,
Machines for injection molding, pulp and paper industry equipment.
