Cleaning and lubrication instructions for TUBOMATIC H-series machines
Cleaning and lubrication instructions for TUBOMATIC H-series machines
Machines for VFD production require periodic maintenance. These are instructions for using the special cleaning kit Tubomatic crimping presses.
- 1. Set the micrometer (set the diameter zero in the electronic unit) at position zero
- 2. Clamp the jaws all the way down
-
3. Attach the special attachment to the cam holder bolts (main cams) as shown in the illustration
-
4. Unclamp the machine jaws. The cam holders (main cams) must remain on the special fixture
-
5. Tilt the machine and place wedges under it as shown in the illustration
-
6. Fill the pump tank with Solvente G flushing liquid, which is included in the scope of delivery
- 7. Connect compressed air max. 7 bar to the pump
-
8. Remove the front cover (see illustration)
-
9. Unscrew the fitting located under the flange
-
10. Attach the corner fitting provided in the kit
-
11. Insert the tube into the fitting, lower the other end of the tube into the waste container
-

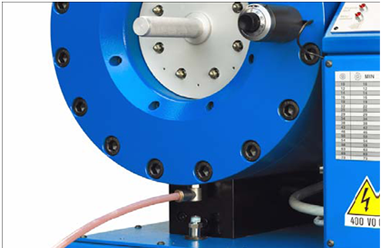

12. Clean from the inside as shown in the illustration
-
13. Blow out after flushing
-
14. Repeat steps №12 and №13 until the liquid flowing through the tube is clear
-
15. Blow with compressed air for approximately two minutes until the surfaces are dry
-
16. Lubricate the 4 upper main cams. To prevent loss of grease in the 4 lower main cams, grease the part of the piston underneath them. Use Kluber Staburags NBV 30 grease (grease supplied)
- 17. Once the machine has been lubricated, the jaws must be clamped together
- 18. Remove the special attachment by pressing it down slightly
- 19. Remove the wedges from under the machine
- 20. Lubricate the eight main cams at the front of the machine
- 21. Perform a couple of cycles of opening and closing the cams at idle without load to distribute the lubricant.
- Special device for locking the main cams
- 2 wedges for tilting the machine
- SOLVENTE cleaning fluid G 1.5 liters
- KLUBER STABURAGS NBV 30 main cam lubricant
- Lubrication tool
- Cleansing pump
