Expansion of the range of pressure gauges - new items in stock
| Pressure Gauge Kits | Part numbers |
| CBOXMED3 pressure gauge set (100-400-600) | CBOXMED3 100-400-600 |
| CBOXMED3 pressure gauge set (16-40-250) | CBOXMED3 16-40-250 |
| CBOXMED3 Pressure Gauge Set (25-100-400) | CBOXMED3 25-100-400 |
| CBOXMED3 Pressure Gauge Set (60-250-600) | CBOXMED3 60-250-600 |

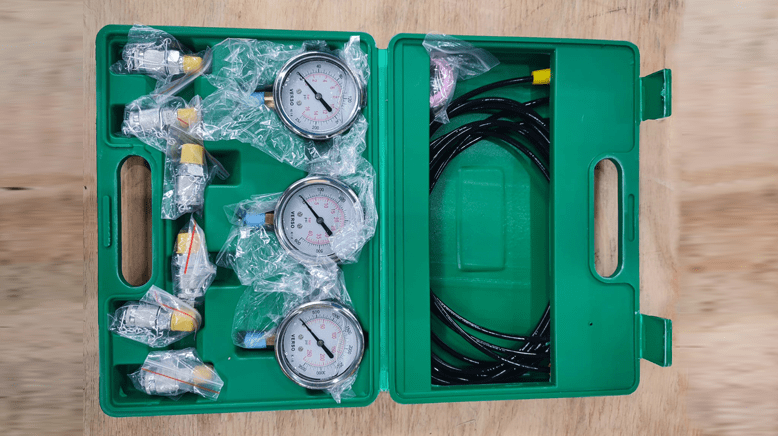

Portable test pressure gauge set is a portable case equipped with pressure measuring devices. Used to connect to any hydraulic equipment using standard M16x2 threaded connections and a suitable micro sleeve.
Each kit is supplied with 3 assembled micro hoses (length 1 meter), at the ends of which M16x2(F) couplings are installed, a set of 6 control points (G1/4, G1/8, G3/8, M14*1.5, M10*1, M10*1.25) and 3 pressure gauges, from the following pressure range (in bar): - 1...0 - 0.6 - 1 - 1.6 - 2.5 - 4 - 6 - 10 - 16 - 25 - 40 - 60 - 100 - 160 - 250 - 315 - 400 - 600 - 1000.
Pressure gauges analog are made of stainless steel, equipped with a Bourdon spring and filled with liquid (glycerin 99.5%), in accordance with DIN 16005. Diameter Ø 63 mm, size 320x280xh119 mm, with radial connection, measurement accuracy - 1.6%.
To order the required pressure gauges:
-
call by phone + 7 (812) 702-12-42 (multi-channel)
-
write by email info@hydravia.ru.
